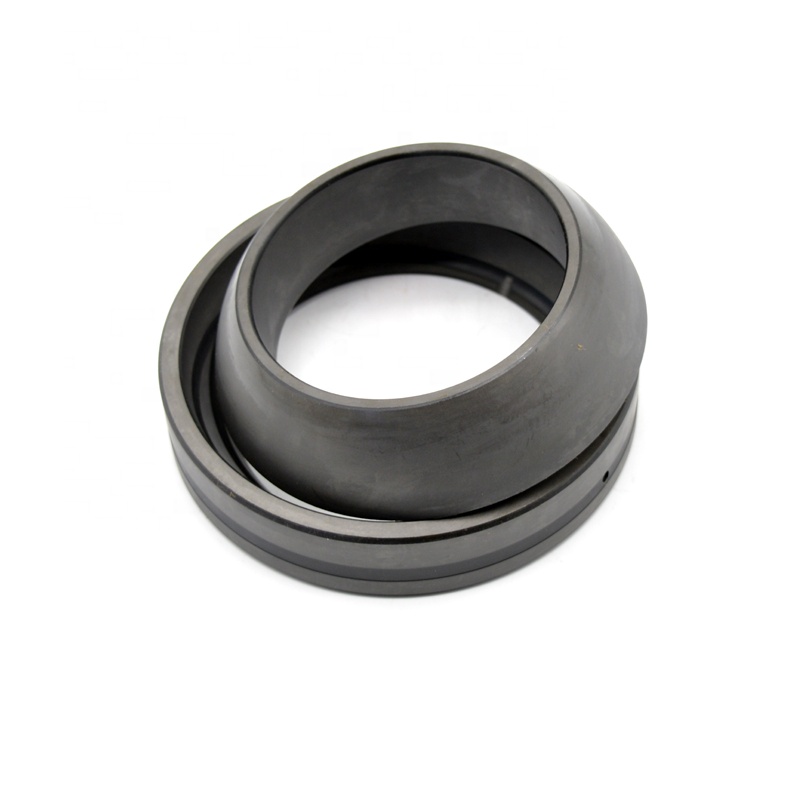

Angular contact spherical plain bearing

The sliding contact surface of angular contact spherical plain bearing is spherical and inclined at a certain angle with the bearing shaft. Therefore, these bearings are very suitable for combined loads. These bearings can be separated so that the rings can be installed separately.

Basic dimensions			Tilt angle	Basic load rating		Mass	Model
				dynamic	static		Bearing No.
d [mm]	D [mm]	T [mm]	α [°]	C [kN]	C0 [kN]	[kg]
25	47	15	2.7	21.6	34.2	0.14	GAC 25 F Bearing
30	55	17	4.7	27	43.2	0.21	GAC 30 F Bearing
35	62	18	3.9	31.95	51.3	0.27	GAC 35 F Bearing
40	68	19	3.7	39.6	62.55	0.33	GAC 40 F Bearing
45	75	20	3.4	45	72	0.42	GAC 45 F Bearing
50	80	20	1.6	52.65	83.7	0.46	GAC 50 F Bearing
60	95	23	2.6	70.2	112.5	0.73	GAC 60 F Bearing
70	110	25	2.3	88.2	140.4	1.05	GAC 70 F Bearing
80	125	29	3.5	109.8	173.7	1.55	GAC 80 F Bearing
90	140	32	2.9	131.4	212.4	2.1	GAC 90 F Bearing
100	150	32	0.8	167.4	270	2.35	GAC 100 F Bearing
110	170	38	3	198	310.5	3.7	GAC 110 F Bearing
120	180	38	0.7	234	373.5	4	GAC 120 F Bearing
